ISO-K 5-Way Crosses
ISO-K 5-Way Crosses
ISO-K 5-Way Crosses - Image 2
ISO-K 4-Way Reducing Crosses ISO-K 4-Way Reducing Crosses
ISO-K 6-Way Crosses ISO-K 6-Way Crosses

ISO-K 5-Way Crosses

Starting at: $780.80 Starting at: $765.18

ISO-K Reducing Tees

ISO-K reducing tees are symmetrical tees that feature 2 flanges of the same size on the main line and a smaller flange on the branch line. This is a cost efficient way to save a fitting to reduce to a smaller flange. Each one is made from stainless steel 304 and has a bead-blasted finish.

SKU: SVC-SKU-2934 Categories: , , Tags: , , , , , , , ,
Original price was: $780.80.Current price is: $765.18.
SKU: ISOK-5C-63
Original price was: $992.00.Current price is: $972.16.
SKU: ISOK-5C-80
Original price was: $1,132.80.Current price is: $1,110.14.
SKU: ISOK-5C-100
Original price was: $2,553.60.Current price is: $2,502.53.
SKU: ISOK-5C-160

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

ISO-K 5-Way Crosses

ISO-K 5-way crosses are a convenient way to add multiple ports giving you plenty of options for connections. Each one is made from stainless steel 304 and has a bead-blasted finish.

Additional information

Weight N/A
Iso Sizes

, , ,

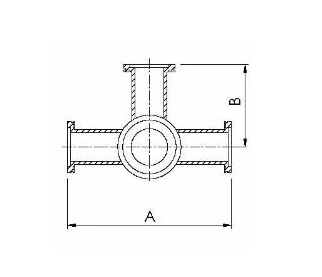

Catalog Part # Size A B
in in
[mm] [mm]
ISOK-5C-63 ISO63 6.5 3.25
[165.0] [82.5]
ISOK-5C-80 ISO80 7 3.5
[177.8] [88.9]
ISOK-5C-100 ISO100 8.26 4.13
[209.8] [104.9]
ISOK-5C-160 ISO160 10.5 5.25
[266.6] [133.3]
