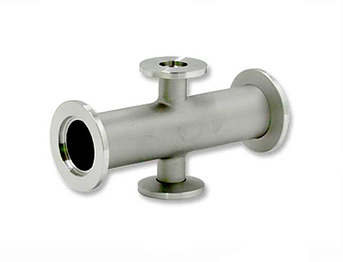

KF 4-Way Reducing Crosses
Starting at: $152.40 Starting at: $149.35
KF 4-Way Reducing Crosses are made from SS304L and are used to adapt from varying sizes of KF fittings. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.
- Description
- Additional information
- Dimensions
Description
KF 4-Way Reducing Crosses are made from SS304L and are used to adapt from varying sizes of KF fittings. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.
Additional information
| Weight | N/A |
|---|---|
| Kf Reducing Crosses | KF25x16, KF25x16-H, KF40x16, KF40x16-H, KF40x25, KF40x25-H, KF50x16, KF50x16-H, KF50x25-H, KF50x40, KF50x40-H |
| Catalog Part # | Size | A | B |
| in | in | ||
| [mm] | [mm] | ||
| KF-4RC-25×16 | KF25 x KF16 | 3.94 | 1.7 |
| [100.00] | [43.20] | ||
| KF-4RC-25×16-H | KF25 x KF16-H | 4.06 | 1.27 |
| [103.12] | [32.26] | ||
| KF-4RC-40×16 | KF40 x KF16 | 4.8 | 1.53 |
| [121.92] | [38.86] | ||
| KF-4RC-40×16-H | KF40 x KF16-H | 5.12 | 1.95 |
| [130.00] | [49.50] | ||
| KF-4RC-40×25 | KF40 x KF25 | 4.8 | 2.28 |
| [121.92] | [57.91] | ||
| KF-4RC-40×25-H | KF40 x KF25-H | 5.12 | 2.22 |
| [130.00] | [56.40] | ||
| KF-4RC-50×16 | KF50 x KF16 | 5.51 | 2.2 |
| [140.00] | [55.90] | ||
| KF-4RC-50×16-H | KF50 x KF16-H | 6.3 | 1.78 |
| [160.02] | [45.21] | ||
| KF-4RC-50×25-H | KF50 x KF25-H | 5.51 | 2.47 |
| [140.00] | [62.70] | ||
| KF-4RC-50×40 | KF50 x KF40 | 5.51 | 2.81 |
| [140.00] | [71.40] | ||
| KF-4RC-50×40-H | KF50 x KF40-H | 6.3 | 2.65 |
| [160.02] | [67.31] |
