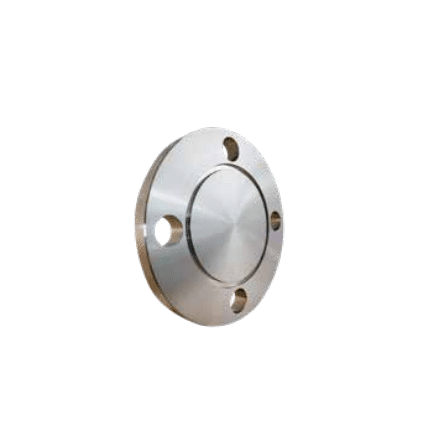

ASA Groove Face Blank Flange
$1,088.00 $1,033.60
ASA Groove Face Blank Flange
The perfect solution for ensuring strong, leak-proof connections in a variety of piping and vacuum systems. Designed to meet the stringent standards of the American Society of Mechanical Engineers (ASME), these flanges are ideal for use in diverse applications such as vacuum, oil and gas, water treatment, and chemical processing.
Constructed from high-quality stainless steel 304, our ASA Flanges boast exceptional durability and corrosion resistance, making them suitable for various environments. The precision machining ensures a perfect fit and reliable performance, while the groove face flange mates with a smooth face flange for sealing.
Key Features:
- Made from premium-grade materials for enhanced strength and longevity.
- Complies with ASME standards for consistent quality and performance.
- Available in a range of sizes to accommodate different piping requirements.
- Groove face flange is to be matched to equivalent smooth face.
- Description
- Additional information
- Dimensions
Description
ASA Groove Face Blank Flange
The perfect solution for ensuring strong, leak-proof connections in a variety of piping and vacuum systems. Designed to meet the stringent standards of the American Society of Mechanical Engineers (ASME), these flanges are ideal for use in diverse applications such as vacuum, oil and gas, water treatment, and chemical processing.
Constructed from high-quality stainless steel 304, our ASA Flanges boast exceptional durability and corrosion resistance, making them suitable for various environments. The precision machining ensures a perfect fit and reliable performance, while the groove face flange mates with a smooth face flange for sealing.
Key Features:
- Made from premium-grade materials for enhanced strength and longevity.
- Complies with ASME standards for consistent quality and performance.
- Available in a range of sizes to accommodate different piping requirements.
- Groove face flange is to be matched to equivalent smooth face.
Additional information
| Weight | N/A |
|---|---|
| Size | 4.25" Blank, 5.00" Blank, 6.00" Blank, 7.5" Blank, 9.00" Blank, 11.00" Blank, 13.5" Blank, 16.00" Blank |
| Flange | Size | Diameter (mm) | Diameter (Inch) | Thickness (mm) | Thickness (Inch) | O-Ring ID (mm) | O-Ring ID (Inch) | Bolt Holes | Bolt Hole Diameter (mm) | Bolt Hole Diameter (Inch) | PCD (mm) | PCD (Inch) |
| ASA-BL-450 | 4.25″ | 108.00 | 4.25 | 12.7 | 0.50 | 41.20 | 1.62 | 4 | 16 | 0.63 | 79.5 | 3.13 |
| ASA-BL-500 | 5.0″ | 127 | 5.00 | 12.7 | 0.50 | 66.60 | 2.62 | 4 | 16 | 0.63 | 98.6 | 3.88 |
| ASA-BL-600 | 6.0″ | 152.4 | 6.00 | 12.7 | 0.50 | 88.90 | 3.50 | 4 | 19.1 | 0.75 | 120.7 | 4.75 |
| ASA-BL-750 | 7.5″ | 190.5 | 7.50 | 12.7 | 0.50 | 117.40 | 4.62 | 4 | 19.1 | 0.75 | 152.4 | 6.00 |
| ASA-BL-900 | 9.0″ | 228.6 | 9.00 | 12.7 | 0.50 | 152.40 | 6.00 | 8 | 19.1 | 0.75 | 190.5 | 7.50 |
| ASA-BL-1100 | 11.0″ | 279.4 | 11.00 | 19.1 | 0.75 | 203.20 | 8.00 | 8 | 20.6 | 0.81 | 241.3 | 9.50 |
| ASA-BL-1350 | 13.5″ | 342.9 | 13.50 | 19.1 | 0.75 | 254.00 | 10.00 | 8 | 20.6 | 0.81 | 298.5 | 11.75 |
| ASA-BL-1600 | 16.0″ | 406.4 | 16.00 | 19.1 | 0.75 | 304.80 | 12.00 | 12 | 20.6 | 0.81 | 362 | 14.25 |
