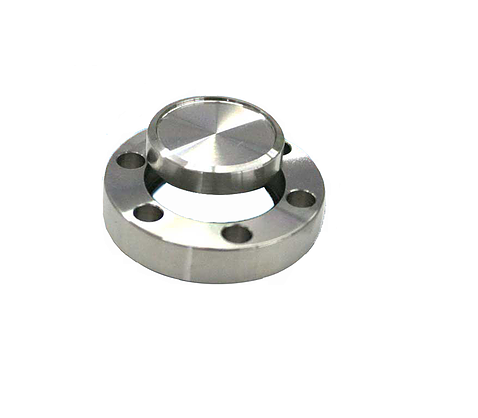

CF Rotatable Blanks with Thru Holes

CF Rotatable Blanks with Thru Holes are made from 304 Stainless Steel and feature a rotatable flange and though-holes for easy of assembly. These can be baked to 450 Celsius and utilize a copper gasket for reliable ultra-high vacuum service.

These are also offered in Metric and Standard threads.

SKU: SVC-SKU-4877 Categories: , , , Tags: , , , , , , , , , , , , , ,
$17.20
SKU: CF-BL-133R
$21.66
SKU: CF-BL-212R
$26.75
SKU: CF-BL-275R
$52.23
SKU: CF-BL-338R
$86.63
SKU: CF-BL-450R
$108.29
SKU: CF-BL-462R
$115.93
SKU: CF-BL-600R
$127.40
SKU: CF-BL-675R
$191.10
SKU: CF-BL-800R
$586.04
SKU: CF-BL-1000R
$1,159.34
SKU: CF-BL-1200R
$1,242.15
SKU: CF-BL-1325R
$1,592.50
SKU: CF-BL-1400R
$2,535.26
SKU: CF-BL-1650R

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

Conflat Rotatable Blanks with Thru Holes

Conflat Rotatable Blanks with Thru Holes are made from 304 Stainless Steel and feature a rotatable flange and though-holes for easy of assembly. These can be baked to 450 Celsius and utilize a copper gasket for reliable ultra-high vacuum service.

These are also offered in Metric and Inch threads.

Additional information

Weight N/A
Cf Blank Rotatable

, , , , , , , , , , , , ,

Catalog Part #

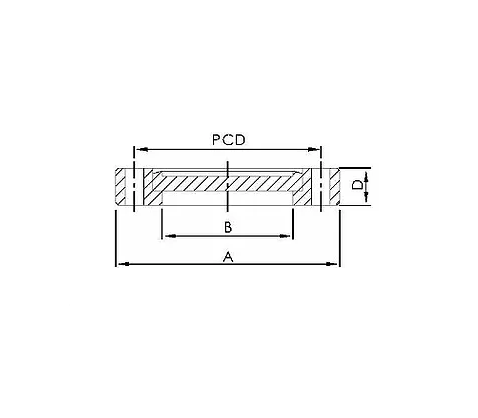

 Type Flange A B D PCD Quantity of Bolt Bolt Hole
in in in in Holes Diameter in[mm]
[mm] [mm] [mm] [mm] or
Thread
CF-BL-133R Thru Holes CF1.33″/CF16 1.33 0.76 0.3 1.06 6 0.17
[33.70] [19.41] [7.60] [26.97] [4.37]
CF-BL-212R Thru Holes CF2.12″/CF25 2.12 1.1 0.47 1.63 4 0.26
[53.80] [27.94] [11.90] [41.28] [6.73]
CF-BL-275R Thru Holes CF2.75″/CF35 2.73 1.9 0.5 2.31 6 0.26
[69.30] [48.31] [12.70] [58.72] [6.73]
CF-BL-338R Thru Holes CF3.38″/CF50 3.36 2.15 0.69 2.85 8 0.33
[85.30] [54.50] [17.40] [72.39] [8.43]
CF-BL-450R Thru Holes CF4.50″/CF63 4.47 2.85 0.75 3.63 8 0.33
[113.50] [72.39] [19.10] [92.15] [8.43]
CF-BL-462R Thru Holes CF4.62″/CF80 4.61 3.14 0.81 4.03 10 0.33
[117.00] [79.71] [20.60] [102.36] [8.43]
CF-BL-600R Thru Holes CF6.00″/CF100 5.97 4.18 0.84 5.13 16 0.33
[151.60] [106.17] [21.30] [130.25] [8.43]
CF-BL-675R Thru Holes CF6.75″/CF130 6.72 5.1 0.84 5.97 18 0.33
[170.69] [129.50] [21.30] [151.61] [8.43]
CF-BL-800R Thru Holes CF8.00″/CF160 7.97 6.13 0.94 7.13 20 0.33
[202.44] [155.70] [23.90] [181.05] [8.43]
CF-BL-1000R Thru Holes CF10.00″/CF200 9.97 8.2 0.97 9.13 24 0.33
[253.24] [208.28] [24.60] [231.85] [8.43]
CF-BL-1200R Thru Holes CF12.00″/CF250 11.97 10.08 1.02 11.18 32 0.33
[304.04] [256.03] [25.90] [283.97] [8.43]
CF-BL-1325R Thru Holes CF13.25″/CF270 13.22 10.88 1.12 12.06 30 0.41
[335.79] [276.30] [28.45] [306.32] [10.49]
CF-BL-1400R Thru Holes CF14.00″/CF300 13.97 12.04 1.12 12.81 30 0.41
[354.84] [305.82] [28.45] [325.37] [10.49]
CF-BL-1650R Thru Holes CF16.50″/CF350 16.47 14.16 1.12 15.31 36 0.41
[418.34] [359.61] [28.45] [388.87] [10.49]
