Conflat Blanks – Fixed

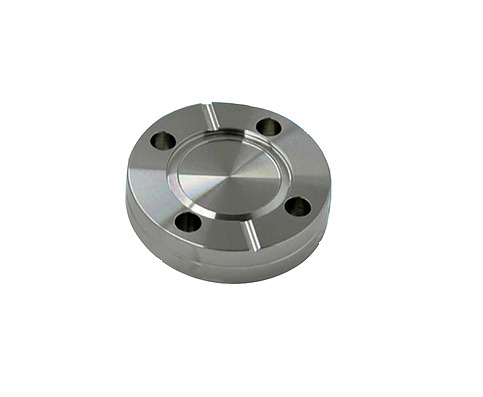

These stainless steel 304 fixed (nonrotatable) conflat flanges are offered in through-holes or tapped (“T” in part designation) in inch threads. Bakeable to 400C and perfect for UHV applications.

SKU: SVC-SKU-3933 Categories: , , , Tags: , , , , , , , , ,
Original price was: $31.40.Current price is: $29.60.
SKU: CF-BL-133T
Original price was: $28.60.Current price is: $27.40.
SKU: CF-BL-133
Original price was: $67.40.Current price is: $65.40.
SKU: CF-BL-212T
Original price was: $78.40.Current price is: $76.40.
SKU: CF-BL-212
Original price was: $125.60.Current price is: $120.60.
SKU: CF-BL-275
Original price was: $142.90.Current price is: $139.90.
SKU: CF-BL-275T
Original price was: $220.00.Current price is: $216.00.
SKU: CF-BL-338T
Original price was: $191.40.Current price is: $188.40.
SKU: CF-BL-338
Original price was: $291.40.Current price is: $288.40.
SKU: CF-BL-450T
Original price was: $300.00.Current price is: $292.00.
SKU: CF-BL-450
Original price was: $160.80.Current price is: $158.40.
SKU: CF-BL-462T
Original price was: $397.20.Current price is: $394.60.
SKU: CF-BL-462
Original price was: $248.60.Current price is: $246.40.
SKU: CF-BL-600T
Original price was: $137.20.Current price is: $135.20.
SKU: CF-BL-600
Original price was: $114.30.Current price is: $112.30.
SKU: CF-BL-675T
Original price was: $344.80.Current price is: $341.80.
SKU: CF-BL-675
Original price was: $201.50.Current price is: $197.47.
SKU: CF-BL-800T
Original price was: $199.20.Current price is: $197.20.
SKU: CF-BL-800
Original price was: $963.80.Current price is: $960.40.
SKU: CF-BL-1000T
Original price was: $365.00.Current price is: $318.00.
SKU: CF-BL-1000
Original price was: $1,656.40.Current price is: $1,646.40.
SKU: CF-BL-1200T
Original price was: $1,563.90.Current price is: $1,557.90.
SKU: CF-BL-1200
Original price was: $780.00.Current price is: $764.40.
SKU: CF-BL-1325T
Original price was: $747.50.Current price is: $732.55.
SKU: CF-BL-1325
Original price was: $1,011.40.Current price is: $991.17.
SKU: CF-BL-1400T
Original price was: $923.00.Current price is: $904.54.
SKU: CF-BL-1400
Original price was: $1,722.50.Current price is: $1,688.05.
SKU: CF-BL-1650T
Original price was: $1,599.00.Current price is: $1,567.02.
SKU: CF-BL-1650

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

Conflat Blanks – Fixed

These stainless steel 304 fixed (nonrotatable) conflat flanges are offered with through-holes or tapped (“T” in part designation) in inch threads. Bakeable to 400C and perfect for UHV applications.

Additional information

Weight N/A
Cf Flanges Fixed

, , , , , , , , , , , , , , , , , , , , , , , , , , ,

Catalog Part #

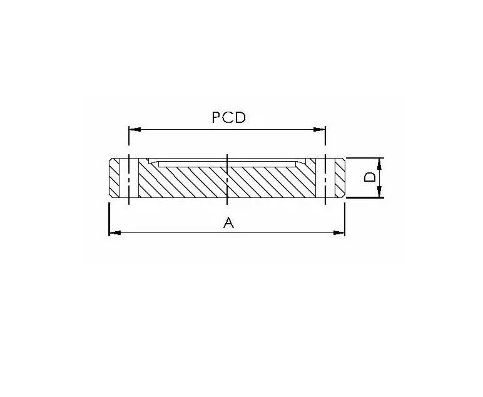

 Type Flange Size A D PCD Quantity of Bolt Bolt Hole
in in in Holes Diameter in[mm]
[mm] [mm] [mm] or
Thread
CF-BL-133 Thru Holes CF1.33″/CF16 1.33 0.3 1.06 6 0.17
[33.70] [7.60] [26.97] [4.37]
CF-BL-133T Tapped CF1.33″/CF16 1.33 0.3 1.06 6 8-32
[33.70] [7.60] [26.97]
CF-BL-212 Thru Holes CF2.12″/CF25 2.12 0.47 1.63 4 0.26
[53.80] [11.90] [41.28] [6.73]
CF-BL-212T Tapped CF2.12″/CF25 2.12 0.47 1.63 4 1/4-28
[53.80] [11.90] [41.28]
CF-BL-275 Thru Holes CF2.75″/CF35 2.73 0.5 2.31 6 0.26
[69.30] [12.70] [58.72] [6.73]
CF-BL-275T Tapped CF2.75″/CF35 2.73 0.5 2.31 6 1/4-28
[69.30] [12.70] [58.72]
CF-BL-338 Thru Holes CF3.38″/CF50 3.36 0.63 2.85 8 0.33
[85.30] [16.00] [72.39] [8.43]
CF-BL-338T Tapped CF3.38″/CF50 3.36 0.63 2.85 8 5/16-24
[85.30] [16.00] [72.39]
CF-BL-450 Thru Holes CF4.50″/CF63 4.47 0.68 3.63 8 0.33
[113.50] [17.30] [92.15] [8.43]
CF-BL-450T Tapped CF4.50″/CF63 4.47 0.68 3.63 8 5/16-24
[113.50] [17.30] [92.15]
CF-BL-462 Thru Holes CF4.62″/CF80 4.61 0.75 4.03 10 0.33
[117.00] [19.10] [102.36] [8.43]
CF-BL-462T Tapped CF4.62″/CF80 4.61 0.75 4.03 10 5/16-24
[117.00] [19.10] [102.36]
CF-BL-600 Thru Holes CF6.00″/CF100 5.97 0.78 5.13 16 0.33
[151.60] [19.80] [130.25] [8.43]
CF-BL-600T Tapped CF6.00″/CF100 5.97 0.78 5.13 16 5/16-24
[151.60] [19.80] [130.25]
CF-BL-675 Thru Holes CF6.75″/CF130 6.72 0.84 5.97 18 0.33
[170.69] [21.30] [151.61] [8.43]
CF-BL-675T Tapped CF6.75″/CF130 6.72 0.84 5.97 18 5/16-24
[170.69] [21.30] [151.61]
CF-BL-800 Thru Holes CF8.00″/CF160 7.97 0.88 7.13 20 0.33
[202.44] [22.35] [181.05] [8.43]
CF-BL-800T Tapped CF8.00″/CF160 7.97 0.88 7.13 20 5/16-24
[202.44] [22.35] [181.05]
CF-BL-1000 Thru Holes CF10.00″/CF200 9.97 0.97 9.13 24 0.33
[253.24] [24.60] [231.85] [8.43]
CF-BL-1000T Tapped CF10.00″/CF200 9.97 0.97 9.13 24 5/16-24
[253.24] [24.60] [231.85]
CF-BL-1200 Thru Holes CF12.00″/CF250 11.98 1.02 11.18 32 0.33
[304.40] [25.90] [283.97] [8.43]
CF-BL-1200T Tapped CF12.00″/CF250 11.98 1.02 11.18 32 5/16-24
[304.40] [25.90] [283.97]
CF-BL-1325 Thru Holes CF13.25″/CF270 13.22 1.12 12.06 30 0.41
[335.79] [28.45] [306.32] [10.49]
CF-BL-1325T Tapped CF13.25″/CF270 13.22 1.12 12.06 30 3/8-24
[335.79] [28.45] [306.32]
CF-BL-1400 Thru Holes CF14.00″/CF300 13.97 1.12 12.81 30 0.41
[354.84] [28.45] [325.37] [10.49]
CF-BL-1400T Tapped CF14.00″/CF300 13.97 1.12 12.81 30 3/8-24
[354.84] [28.45] [325.37]
CF-BL-1650 Thru Holes CF16.50″/CF350 16.47 1.12 15.31 36 0.41
[418.34] [28.45] [388.87] [10.49]
CF-BL-1650T Tapped CF16.50″/CF350 16.47 1.12 15.31 36 3/8-24
[418.34] [28.45] [388.87]
