KF To Quick Coupling Adapter
Starting at: $62.40 Starting at: $61.15

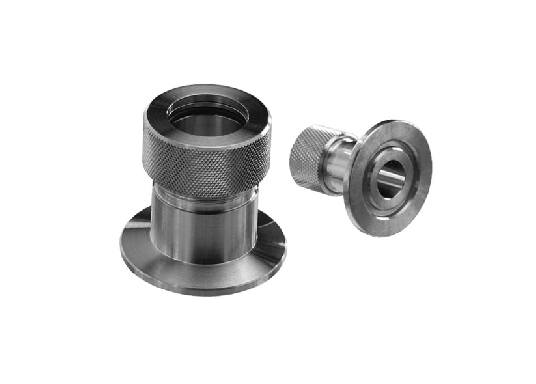

KF To Quick Coupling Adapter
The KF To Quick Coupling Adapter utilizes an FKM (Viton) o-ring for sealing on the quick coupling. Made from 304L stainless steel.
- Description
- Additional information
- Dimensions
Description
KF To Quick Coupling Adapter
The KF To Quick Coupling Adapter utilizes an FKM (Viton) o-ring for sealing on the quick coupling. Made from 304L stainless steel.
Additional information
| Weight | 1.5 lbs |
|---|---|
| Adapter Kf To Quick | KF16 x 1/2", KF16 x 1/4", KF16 x 3/4", KF25 x 1-1/8", KF25 x 1/2", KF25 x 1", KF25 x 3/4", KF25 x 5/8", KF40 x 1-1/2", KF40 x 1-1/4", KF40 x 1-1/8", KF40 x 1-3/8", KF40 x 1/2", KF40 x 1", KF40 x 3/4", KF50 x 1-1/2", KF50 x 1-1/8", KF50 x 1/2", KF50 x 1", KF50 x 2", KF50 x 3/4" |

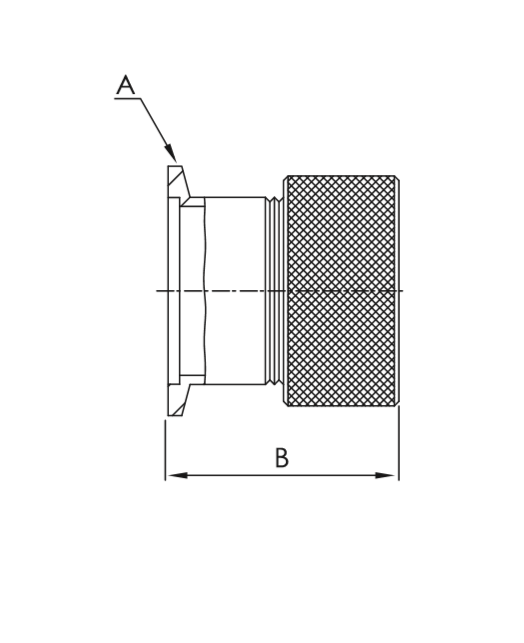

| Description | A | B | Tube Size |
| KF16XQD25-1.150 | 0.27 | 1.4 | 1/4 in. |
| KF16XQD50-1.523 | 0.52 | 1.5 | 1/2 in. |
| KF16XQD75-1.81 | 0.77 | 1.8 | 3/4 in. |
| KF25XQD50-1.575 | 0.52 | 1.5 | 1/2 in. |
| KF25XQD62-1.66 | 0.64 | 1.7 | 5/8 in. |
| KF25XQD75-1.81 | 0.77 | 1.8 | 3/4 in. |
| KF25XQD100-2.01 | 1.02 | 2 | 1 in. |
| KF25XQD112-2.01 | 1.14 | 2 | 1-1/8 in. |
| KF40XQD50-1.51 | 0.52 | 1.5 | 1/2 in. |
| KF40XQD75-1.81 | 0.77 | 1.8 | 3/4 in. |
| KF40XQD100-2.01 | 1.02 | 2 | 1 in. |
| KF40XQD112-2.01 | 1.14 | 2 | 1-1/8 in. |
| KF40XQD125-2.16 | 1.27 | 2 | 1-1/4 in. |
| KF40XQD138-2.28 | 1.39 | 2.1 | 1-3/8 in. |
| KF40XQD150-2.32 | 1.52 | 2.4 | 1-1/2 in. |
| KF50XQD50-1.47 | 0.52 | 1.5 | 1/2 in. |
| KF50XQD75-1.525 | 0.77 | 1.8 | 3/4 in. |
| KF50XQD100-1.96 | 1.02 | 2 | 1 in. |
| KF50XQD112-1.825 | 1.14 | 2 | 1-1/8 in. |
| KF50XQD150-2.40 | 1.52 | 2.4 | 1-1/2 in. |
| KF50XQD200-2.38 | 2.02 | 2.4 | 2 in. |
