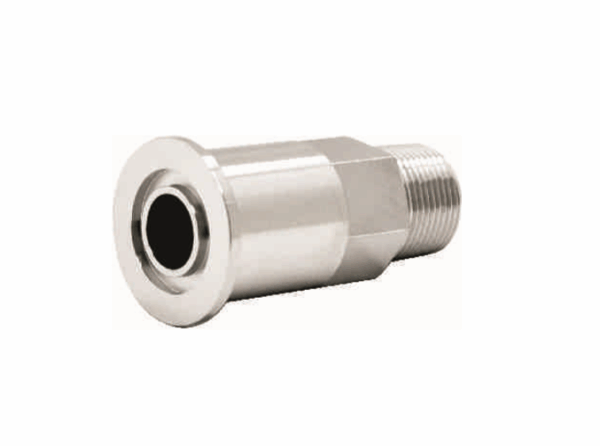

KF to NPT Male Pipe Adapter
Starting at: $40.60 Starting at: $39.79
KF to NPT Male Pipe Adapter
Flange to NPT fitting adapters allow the mating of one type of flange system to an NPT fitting. All of our flange to fitting adapters are manufactured from 304 series stainless steel.
- Description
- Additional information
- Dimensions
Description
KF to NPT Male Pipe Adapter
Flange to NPT fitting adapters allow the mating of one type of flange system to an NPT fitting. All of our flange to fitting adapters are manufactured from 304 series stainless steel.
Additional information
| Flange | Bore | Fitting | Overall Length | Part Number | |
|
0.36 | 1/4″ Male NPT | 2 | QF16XMNPT4 | |
| KF16 (1.18″ OD) |
|
3/8″ Male NPT | 2.5 | QF16XMNPT6 | |
| KF16 (1.18″ OD) | 0.62 | 1/2″ Male NPT | 2.95 | QF16XMNPT8 | |
| KF25 (1.57″ OD) | 0.26 | 1/8″ Male NPT | 1.57 | QF25XMNPT2 | |
| KF25 (1.57″ OD) | 0.36 | 1/4″ Male NPT | 1.97 | QF25XMNPT4 | |
| KF25 (1.57″ OD) | 0.5 | 3/8″ Male NPT | 1.57 | QF25XMNPT6 | |
| KF25 (1.57″ OD) | 0.63 | 1/2″ Male NPT | 2.95 | QF25XMNPT8 | |
| KF25 (1.57″ OD) | 0.83 | 3/4″ Male NPT | 2.95 | QF25XMNPT12 | |
| KF25 (1.57″ OD) | 1.05 | 1″ Male NPT | 3 | QF25XMNPT16 | |
| KF40 (2.16″ OD) | 0.26 | 1/8″ Male NPT | 1.57 | QF40XMNPT2 | |
| KF40 (2.16″ OD) | 0.36 | 1/4″ Male NPT | 1.97 | QF40XMNPT4 | |
| KF40 (2.16″ OD) | 0.63 | 1/2″ Male NPT | 2.95 | QF40XMNPT8 | |
| KF40 (2.16″ OD) | 0.83 | 3/4″ Male NPT | 2.95 | QF40XMNPT12 | |
| KF40 (2.16″ OD) | 1.05 | 1″ Male NPT | 2.95 | QF40XMNPT16 | |
| KF40 (2.16″ OD) | 1.38 | 1-1/4” Male NPT | 2.95 | QF40XMNPT20 | |
| KF40 (2.16″ OD) | 1.61 | 1-1/2” Male NPT | 3.25 | QF40XMNPT24 | |
| KF50 (2.95″ OD) | 0.26 | 1/8″ Male NPT | 1.57 | QF50XMNPT2 | |
| KF50 (2.95″ OD) | 0.36 | 1/4″ Male NPT | 1.97 | QF50XMNPT4 | |
| KF50 (2.95″ OD) | 0.63 | 1/2″ Male NPT | 2.95 | QF50XMNPT8 | |
| KF50 (2.95″ OD) | 0.83 | 3/4″ Male NPT | 2.95 | QF50XMNPT12 | |
| KF50 (2.95″ OD) | 1.05 | 1″ Male NPT | 2.95 | QF50XMNPT16 | |
| KF50 (2.95″ OD) | 2.07 | 2” Male NPT | 3.12 | QF50XMNPT32 |
