KF to NPT Female Pipe Adapter – Shop Vacuum Chamber

Sale

KF to Female NPT Adapter

KF to Female NPT Adapter Dimensions

KF to Female NPT Adapter

KF to Female NPT Adapter Dimensions

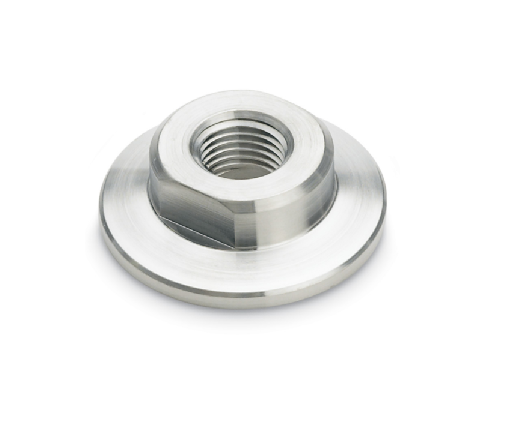

KF to NPT Female Pipe Adapter

~~Starting at: $31.63~~ Starting at: $31.00

KF to NPT Female Pipe Adapter

This KF to NPT Female Pipe Adapter has a feature for utilizing an open-ended wrench to tighten to an assembly. Made from stainless steel 304.

SKU: SVC-SKU-11723 Categories: Hardware and Fittings, Hybrid Adapters, KF to Female Pipe, NPT Tags: adapter, kf, kwik, national pipe thread, npt, nw, pipe, pipe threads, qf, quick, qwik

Adapter Kf To Npt

Clear

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description
Additional information
Dimensions

Description

KF to NPT Female Pipe Adapter

This KF to NPT Female Pipe Adapter has a feature for utilizing an open-ended wrench to tighten to an assembly. Made from stainless steel 304.

Additional information

Weight	N/A
Adapter Kf To Npt	KF10 to 1/4" NPT, KF10 to 1/8" NPT, KF16 to 1/4" NPT, KF16 to 1/8" NPT, KF25 to 1/2" NPT, KF25 to 1/4" NPT, KF25 to 1/8" NPT, KF25 to 3/4" NPT, KF25 to 3/8" NPT, KF40 to 1/2" NPT, KF40 to 1/4" NPT, KF40 to 1/8" NPT, KF40 to 3/4" NPT, KF40 to 3/8" NPT, KF50 to 1/4" NPT, KF50 to 1/8" NPT

Flange	Fitting	Overall Height “A”	Part Number
KF10 (1.18″ OD)	1/8″ Female NPT	0.5	QF10XFNPT2
KF10 (1.18″ OD)	1/4″ Female NPT	0.5	QF10XFNPT4
KF16 (1.18″ OD)	1/8″ Female NPT	0.5	QF16XFNPT2
KF16 (1.18″ OD)	1/4″ Female NPT	0.5	QF16XFNPT4
KF25 (1.57″ OD)	1/8″ Female NPT	0.5	QF25XFNPT2
KF25 (1.57″ OD)	1/4″ Female NPT	0.5	QF25XFNPT4
KF25 (1.57″ OD)	3/8″ Female NPT	0.58	QF25XFNPT6
KF25 (1.57″ OD)	1/2″ Female NPT	0.72	QF25XFNPT8
KF25 (1.57″ OD)	3/4″ Female NPT	0.75	QF25XFNPT12
KF40 (2.16″ OD)	1/8″ Female NPT	0.5	QF40XFNPT2
KF40 (2.16″ OD)	1/4″ Female NPT	0.5	QF40XFNPT4
KF40 (2.16″ OD)	3/8″ Female NPT	0.58	QF40XFNPT6
KF40 (2.16″ OD)	1/2″ Female NPT	0.72	QF40XFNPT8
KF40 (2.16″ OD)	3/4″ Female NPT	0.92	QF40XFNPT12
KF50 (2.95″ OD)	1/8″ Female NPT	0.62	QF50XFNPT2
KF50 (2.95″ OD)	1/4″ Female NPT	0.62	QF50XFNPT4
