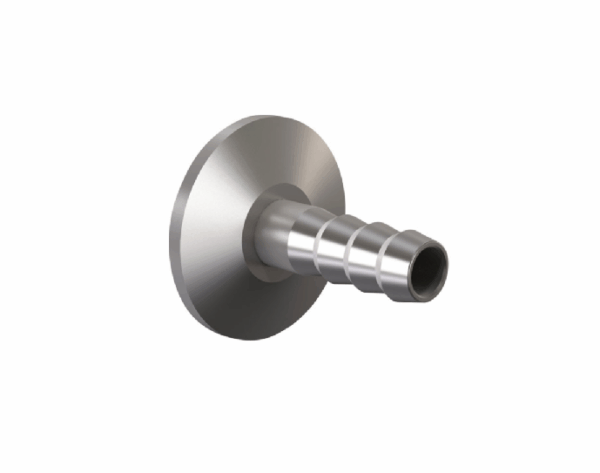

KF to Hose Barb Adapter
KF to Hose Barb Adapter
KF to Hose Barb Adapter - Image 2
KF to Female NPT Adapter KF to NPT Female Pipe Adapter
Adapter KF to Quick Connect KF To Quick Coupling Adapter

KF to Hose Barb Adapter

Starting at: $26.98 Starting at: $26.44

KF to Hose Barb Adapter

These adapter hose nozzles are commonly used to make connections between ISO-QF fittings and vacuum hoses. The standard sizes for quick flange fittings are KF (QF) 16, KF (QF)25, KF (QF) 40, and KF (QF) 50. These fittings have an overall length of 40mm (1.57″) and fit a 12mm (1/2″) ID hose. They are made of 304L Stainless Steel and Aluminum.

SKU: SVC-SKU-11740 Categories: , , Tags: , , , , , , , , ,
Original price was: $26.98.Current price is: $26.44.
SKU: QF16-050-AHA
Original price was: $32.50.Current price is: $31.85.
SKU: QF16-050-SHA
Original price was: $29.25.Current price is: $28.67.
SKU: QF25-050-AHA
Original price was: $28.60.Current price is: $28.03.
SKU: QF25-050-SHA
Original price was: $32.50.Current price is: $31.85.
SKU: QF40-050-AHA
Original price was: $50.70.Current price is: $49.69.
SKU: QF40-050-SHA
Original price was: $43.55.Current price is: $42.68.
SKU: QF50-050-AHA
Original price was: $65.00.Current price is: $63.70.
SKU: QF50-050-SHA

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

KF to Hose Barb Adapter

These adapter hose nozzles are commonly used to make connections between ISO-QF fittings and vacuum hoses. The standard sizes for quick flange fittings are KF (QF) 16, KF (QF)25, KF (QF) 40, and KF (QF) 50. These fittings have an overall length of 40mm (1.57″) and fit a 12mm (1/2″) ID hose. They are made of 304L Stainless Steel and Aluminum.

Additional information

Weight N/A
Adapter Kf To Hose Barb

, , ,

Material

,

Flange Material Dim A Dim B Dim C Dim D Part Number
KF16 (1.18″ OD) Aluminum 1.57 1.18 0.28 0.47 QF16-050-AHA
KF16 (1.18″ OD) Stainless Steel 1.57 1.18 0.28 0.47 QF16-050-SHA
KF25 (1.57″ OD) Aluminum 1.57 1.57 0.28 0.47 QF25-050-AHA
KF25 (1.57″ OD) Stainless Steel 1.57 1.57 0.28 0.47 QF25-050-SHA
KF40 (2.16″ OD) Aluminum 1.57 2.17 0.28 0.47 QF40-050-AHA
KF40 (2.16″ OD) Stainless Steel 1.57 2.17 0.28 0.47 QF40-050-SHA
KF50 (2.95″ OD) Aluminum 1.57 2.95 0.28 0.47 QF50-050-AHA
KF50 (2.95″ OD) Stainless Steel 1.57 2.95 0.28 0.47 QF50-050-SHA
