KF to CF Straight Adapter
Starting at: $43.65 Starting at: $42.78
KF to CF Straight Adapter

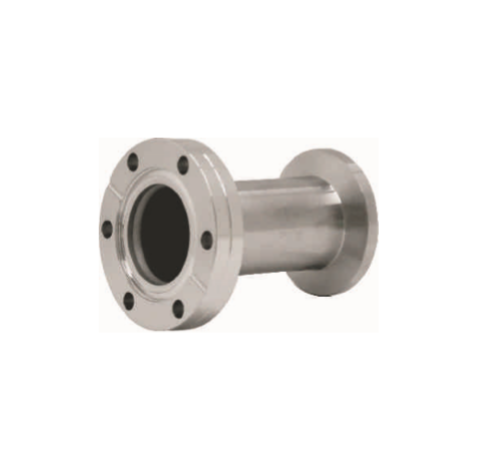

The KF to CF Straight Adapter utilizes a fixed CF flange and a KF flange with a straight tube in between. The adapter is made from stainless steel 304.
- Description
- Additional information
- Dimensions
Description
KF to CF Straight Adapter
The KF to CF Straight Adapter utilizes a fixed CF flange and a KF flange with a straight tube in between. The adapter is made from stainless steel 304.
Additional information
| Weight | N/A |
|---|---|
| Adapter Kf To Cf Straight | KF16 to CF1.33", KF16 to CF2.75", KF25 to CF2.12", KF25 to CF2.75", KF40 to CF2.75", KF40 to CF3.38", KF50 to CF2.75", KF50 to CF3.38", KF50 to CF4.50" |

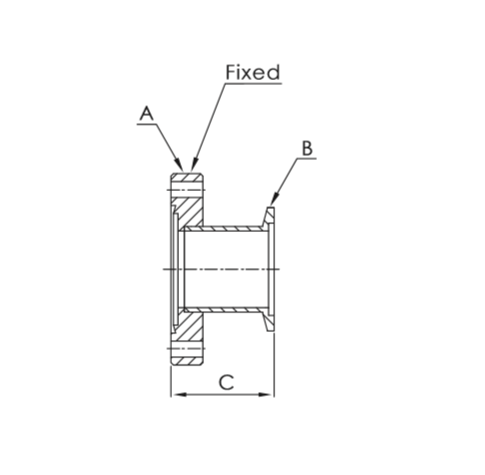

| Part Number | A | B | C |
| AD-KFCF-10×133 | CF1.33 | KF10 | 44.5 |
| AD-KFCF-16×133 | CF1.33 | KF16 | 44.5 |
| AD-KFCF-16×175 | CF2.75 | KF16 | 45.2 |
| AD-KFCF-25×212 | CF2.12 | KF25 | 44.5 |
| AD-KFCF-25×275 | CF2.75 | KF25 | 45.2 |
| AD-KFCF-40×275 | CF2.75 | KF40 | 45.2 |
| AD-KFCF-40×338 | CF3.38 | KF40 | 45.7 |
| AD-KFCF-50×133 | CF1.33 | KF50 | 49.5 |
| AD-KFCF-50×275 | CF2.75 | KF50 | 49.5 |
| AD-KFCF-50×338 | CF3.38 | KF50 | 45.7 |
| AD-KFCF-50×450 | CF4.50 | KF50 | 49.5 |
