CF Conical Reducers
CF Conical Reducers
CF Straight Reducer CF Straight Reducers
CF Reducing Crosses CF Reducing Crosses

CF Conical Reducers

Starting at: $136.50 Starting at: $133.77

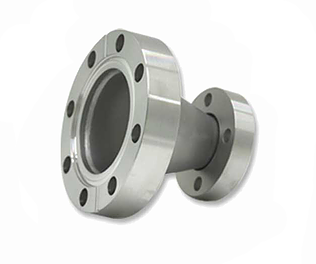

CF Conical Reducers are made from SS304L and are used to adapt from varying sizes of CF fittings. They are rated to 450 Celsius and for UHV service. They utilize a copper gasket.

SKU: SVC-SKU-2081 Categories: , , Tags: , , , , , , , ,
$171.99
SKU: CF-CR-212x133
$159.25
SKU: CF-CR-275x133
$159.25
SKU: CF-CR-275x212
$133.77
SKU: CF-CR-338x212
$165.62
SKU: CF-CR-338x275
$197.47
SKU: CF-CR-450x275
$222.95
SKU: CF-CR-450x338
$210.21
SKU: CF-CR-462x275
$242.06
SKU: CF-CR-462x338
$337.61
SKU: CF-CR-462x450
$288.50
SKU: CF-CR-600x275
$324.87
SKU: CF-CR-600x338
$343.98
SKU: CF-CR-600x450
$420.42
SKU: CF-CR-600x462

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

CF Conical Reducers

CF Conical Reducers are made from SS304L and are used to adapt from varying sizes of CF fittings. They are rated to 450 Celsius and for UHV service. They utilize a copper gasket.

Additional information

Weight N/A
Cf Conical Reducer

, , , , , , , , , , , , ,

CF Conical Reducers Dimensions

Catalog Part # Flange Size A (in) B (in) C
in [mm]
CF-CR-212×133 CF2.12″/1.33″ 2.12 1.33 2.04
[51.90]
CF-CR-275×133 CF2.75″/1.33″ 2.75 1.33 3.08
[78.30]
CF-CR-275×212 CF2.75″/2.12″ 2.75 2.12 2.75
[69.90]
CF-CR-338×212 CF3.38″/2.12″ 3.38 2.12 2.77
[70.30]
CF-CR-338×275 CF3.38″/2.75″ 3.38 2.75 2.81
[71.30]
CF-CR-450×275 CF4.50″/2.75″ 4.5 2.75 2.96
[75.20]
CF-CR-450×338 CF4.50″/3.38″ 4.5 3.38 2.98
[75.60]
CF-CR-462×275 CF4.62″/2.75″ 4.62 2.75 4.11
[104.50]
CF-CR-462×338 CF4.62″/3.38″ 4.62 3.38 4.13
[104.90]
CF-CR-462×450 CF4.62″/4.50″ 4.62 4.5 4.28
[108.70]
CF-CR-600×338 CF6.00″/3.38″ 6 3.38 4.29
[108.90]
CF-CR-600×450 CF6.00″/4.50″ 6 4.5 4.44
[112.70]
CF-CR-600×462 CF6.00″/4.62″ 6 4.62 4.34
[110.30]
