Conflat Bellows

Starting at: $109.25 Starting at: $107.07

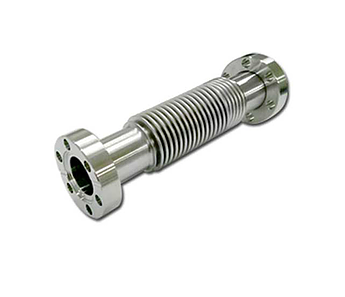

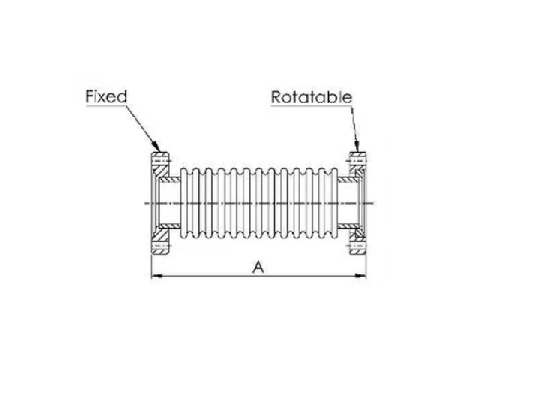

These Conflat Bellows are made from SS304 and feature one fixed flange and one rotatable flange (both with through-holes).

CF Sizes 1.33″, 2.12″, 2.75″ and 3.38″ have a free length of 82mm (3.2″) and a wall thickness of 0.15mm (0.006″).

CF Sizes 4.5″, 4.62″, 6.0″, and 8.0″ have a free length of 178mm (7.0″) and a wall thickness of 0.20mm (0.008″).

SKU: SVC-SKU-3539 Categories: , , Tags: , , , , , , ,
$107.07
SKU: MB-CF-133-082L
$152.15
SKU: MB-CF-212-082L
$214.13
SKU: MB-CF-275-082L
$287.39
SKU: MB-CF-338-082L
$501.52
SKU: MB-CF-450-178L
$676.20
SKU: MB-CF-462-178L
$1,014.30
SKU: MB-CF-600-178L
$1,656.69
SKU: MB-CF-800-178L

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

These Conflat Bellows are made from SS304 and feature one fixed flange and one rotatable flange (both with through-holes).

CF Sizes 1.33″, 2.12″, 2.75″ and 3.38″ have a free length of 82mm (3.2″) and a wall thickness of 0.15mm (0.006″).

CF Sizes 4.5″, 4.62″, 6.0″, and 8.0″ have a free length of 178mm (7.0″) and a wall thickness of 0.20mm (0.008″).

Additional information

Weight N/A
