Minimum order $75
Sale

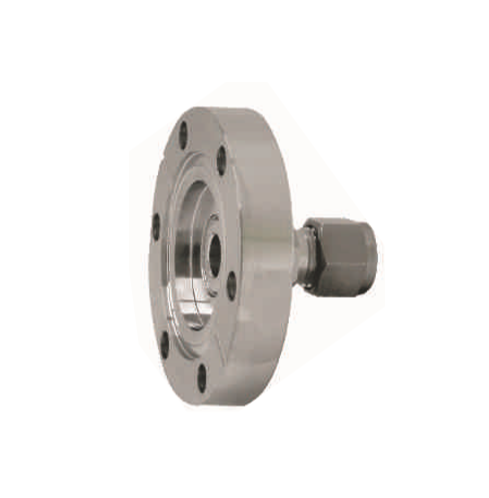

Conflat to Female VCR Adapter
Starting at: $101.79 Starting at: $99.75
Conflat to Female VCR Adapter
The Conflat to Female VCR Adapter includes a fixed conflat flange and female VCR fitting. The conflat flange is made from stainless steel 304 and the VCR flange is made from 316L.
- Description
- Additional information
- Dimensions
Description
Conflat to Female VCR Adapter
The Conflat to Female VCR Adapter includes a fixed conflat flange and female VCR fitting. The conflat flange is made from stainless steel 304 and the VCR flange is made from 316L.
Additional information
| Weight | N/A |
|---|---|
| Adapter Cf To Female Vcr | CF1.33" to 1/2" VCR, CF1.33" to 1/4" VCR, CF1.33" to 3/8" VCR, CF2.75" to 1/2" VCR, CF2.75" to 1/4" VCR, CF2.75" to 3/8" VCR |

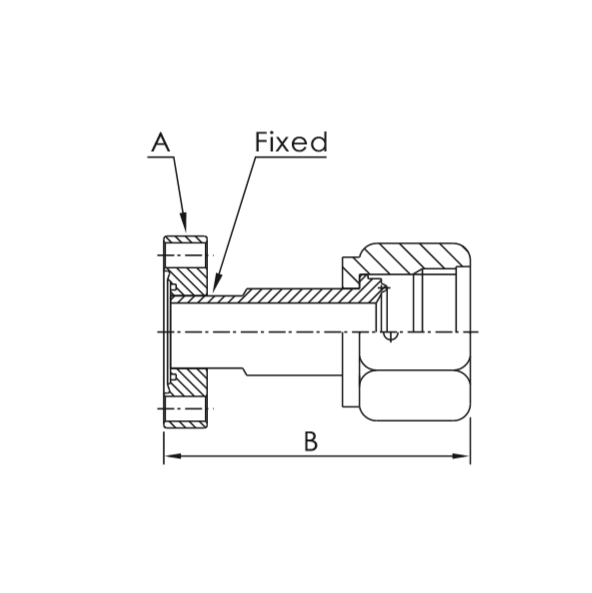

| Size | A | B |
| CF1.33″ x 1/4″ | CF1.33″ | 36.30 |
| CF1.33″ x 3/8″ | CF1.33″ | 39.27 |
| CF1.33″ x 1/2″ | CF1.33″ | 39.27 |
| CF2.75″ x 1/4″ | CF2.75″ | 38.61 |
| CF2.75″ x 3/8″ | CF2.75″ | 43.41 |
| CF2.75″ x 1/2″ | CF2.75″ | 43.41 |
