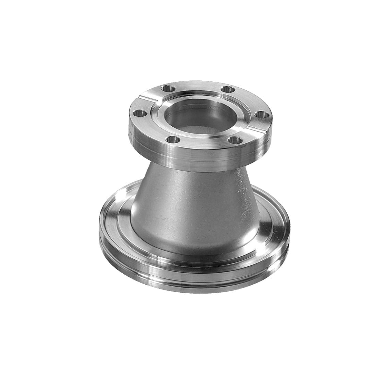

ISO to CF Conical Adapter
Starting at: $143.91 Starting at: $141.03
ISO to CF Conical Adapter
The ISO to CF Conical Adapter utilizes an ISO-K flange on one end and a Conflat flange on the other. The adapter utilizes a conical reducer transition to maximize molecular conductance. Made from 304 stainless steel.
- Description
- Additional information
- Dimensions
Description
ISO to CF Conical Adapter
The ISO to CF Conical Adapter utilizes an ISO-K flange on one end and a Conflat flange on the other. The adapter utilizes a conical reducer transition to maximize molecular conductance. Made from 304 stainless steel.
Additional information
| Weight | N/A |
|---|---|
| Iso To Cf Conical Adapter | ISO100 to CF3.38", ISO100 to CF4.50", ISO100 to CF4.62", ISO63 to CF2.75", ISO63 to CF3.38", ISO63 to CF4.62', ISO63 to CF6.00", ISO80 to CF2.75", ISO80 to CF3.38", ISO80 to CF4.50", ISO80 to CF6.00" |

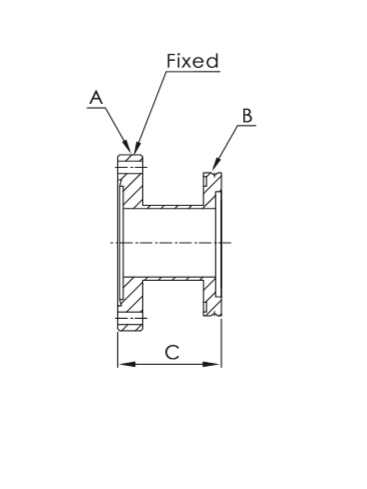

| Flanges | A | B | C (mm) |
| ISO63/CF4.50(DN63) | CF4.50 | ISO63 | 110.00 |
| ISO80/CF4.62(DN80) | CF4.62 | ISO80 | 110.00 |
| ISO80/CF6.00(DN100) | CF6.00 | ISO80 | 110.00 |
| ISO100/CF6.00(DN100) | CF6.00 | ISO100 | 111.00 |
| ISO160/CF8.00(DN160) | CF8.00 | ISO160 | 113.00 |
| ISO200/CF10.00(DN200) | CF10.00 | ISO200 | 113.00 |
