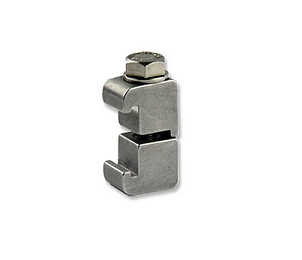

ISO-K Double Claw Clamps

These clamps work to fasten an ISO-K flange to a mating ISO-K flange. Two sizes are offered:

  • ISO63 to ISO100
  • ISO160 to ISO250

These are also offered in Inch or Metric threads. These clamps are made from aluminum.

  • ISO63 – 4
  • ISO80 – 4 to 8
  • ISO100 – 4 to 8
  • ISO160 – 4 to 8
  • ISO200 – 6 to 12
  • ISO250 – 6 to 12

Priced as a single clamp.

SKU: SVC-SKU-3526 Categories: , , , Tags: , , , , , , , , , , ,
$7.53
SKU: ISOK-DC-63100-AL
$7.53
SKU: ISOK-DC-63100M-AL
$8.78
SKU: ISOK-DC-160250-AL
$8.78
SKU: ISOK-DC-160250M-AL

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

ISO-K Double Claw Clamps

These clamps work to fasten an ISO-K flange to a mating ISO-K flange. Two sizes are offered:

  • ISO63 to ISO100
  • ISO160 to ISO250

These are also offered in Inch or Metric threads. These clamps are made from aluminum.

  • ISO63 – 4
  • ISO80 – 4 to 8
  • ISO100 – 4 to 8
  • ISO160 – 4 to 8
  • ISO200 – 6 to 12
  • ISO250 – 6 to 12

Priced as a single clamp.

Additional information

Weight N/A

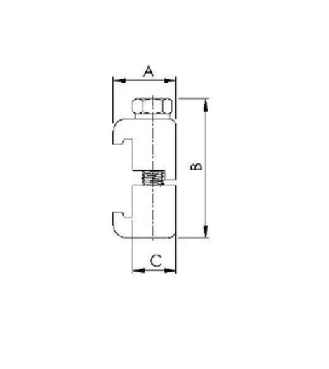

Iso K Double Claw

, , ,

Catalog Part # A B C Inch Thread Size Metric Thread Size
in in in
[mm] [mm] [mm]
ISOK 63-100 0.94 1.97 0.65 5/16”-18 M8x45
[24.0] [50.0] [16.5]
ISOK 160-250 1.08 2.03 0.79 5/16”-18 M10x45
[27.5] [51.6] [20.0]
