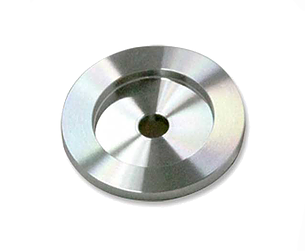

Bored Flange Pic
Bored Flange Pic
KF Bored Flanges - Image 2
KF Bored Flanges - Image 3
KF Bulkhead Fittings Pic KF Bulkhead Fittings

KF Bored Flanges

Starting at: $11.68 Starting at: $11.45

KF Bored Flanges are made from stainless steel 304/L and are pre-bored with either a straight bore or step bore (see “Dimensions” tab below for more information). These are perfect to save you time and money on machining operations and instead, let you get to welding quicker.

SKU: SVC-SKU-2528 Categories: , Tags: , , , , , , , , , , , ,
$25.05
SKU: KF-BF-50x025
$25.05
SKU: KF-BF-50x038
$25.05
SKU: KF-BF-50x050
$25.05
SKU: KF-BF-50x075
$25.05
SKU: KF-BF-50x100
$25.05
SKU: KF-BF-50x150
$25.05
SKU: KF-BF-50x200
$17.89
SKU: KF-BF-40x150
$17.89
SKU: KF-BF-40x100
$17.89
SKU: KF-BF-40x075
$17.89
SKU: KF-BF-40x050
$17.89
SKU: KF-BF-40x038
$17.89
SKU: KF-BF-40x025
$13.60
SKU: KF-BF-25x100
$13.60
SKU: KF-BF-25x075
$13.60
SKU: KF-BF-25x050
$13.60
SKU: KF-BF-25x038
$13.60
SKU: KF-BF-25x025
$11.45
SKU: KF-BF-16x075
$11.45
SKU: KF-BF-16x050
$11.45
SKU: KF-BF-16x038
$11.45
SKU: KF-BF-16x025
$11.45
SKU: KF-BF-10x038

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

KF Bored Flanges are made from stainless steel 304/L and are pre-bored with either a straight bore or step bore (see “Dimensions” tab below for more information). These are perfect to save you time and money on machining operations and instead, let you get to welding quicker.

Additional information

Weight N/A
Kf Bored Flanges

, , , , , , , , , , , , , , , , , , , , , ,

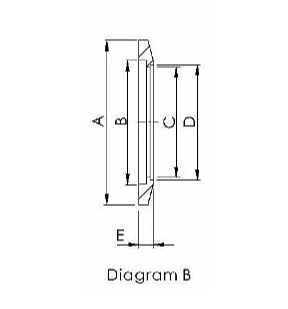

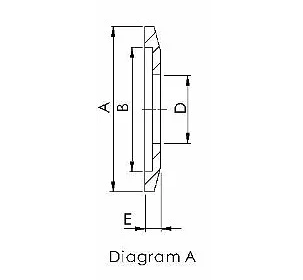

Catalog Part # Size Diagram A B C D E
in in in in in
[mm] [mm] [mm] [mm] [mm]
KF-BF-10×038 KF 10-3/8” A 1.18 0.48 0.38 0.2
[30] [12.2] [9.65] [5.1]
KF-BF-16×025 KF16-1/4” A 1.18 0.68 0.26 0.2
[30] [17.2] [6.50] [5.1]
KF-BF-16×038 KF16-3/8” A 1.18 0.68 0.38 0.2
[30] [17.2] [9.65] [5.1]
KF-BF-16×050 KF16-1/2” B 1.18 0.68 0.4 0.51 0.2
[30] [17.2] [10.16] [12.95] [5.1]
KF-BF-16×075 KF16-3/4” B 1.18 0.68 0.65 0.76 0.17
[30] [17.2] [16.51] [19.30] [4.4]
KF-BF-25×025 KF25-1/4” A 1.57 1.03 0.26 0.2
[40] [26.2] [6.50] [5.1]
KF-BF-25×038 KF25-3/8” A 1.57 1.03 0.38 0.2
[40] [26.2] [9.65] [5.1]
KF-BF-25×050 KF25-1/2” B 1.57 1.03 0.4 0.51 0.2
[40] [26.2] [10.16] [12.95] [5.1]
KF-BF-25×075 KF25-3/4” B 1.57 1.03 0.65 0.76 0.2
[40] [26.2] [16.51] [19.30] [5.1]
KF-BF-25×100 KF25-1.0” B 1.57 1.03 0.9 1.01 0.19
[40] [26.2] [22.88] [25.65] [4.9]
KF-BF-40×025 KF40-1/4” A 2.17 1.62 0.26 0.2
[55] [41.2] [6.50] [5.1]
KF-BF-40×038 KF40-3/8” A 2.17 1.62 0.38 0.2
[55] [41.2] [9.65] [5.1]
KF-BF-40×050 KF40-1/2” B 2.17 1.62 0.4 0.51 0.2
[55] [41.2] [10.16] [12.95] [5.1]
KF-BF-40×075 KF40-3/4” B 2.17 1.62 0.65 0.76 0.2
[55] [41.2] [16.51] [19.30] [5.1]
KF-BF-40×100 KF40-1.0” B 2.17 1.62 0.9 1.01 0.2
[55] [41.2] [22.88] [25.65] [5.1]
KF-BF-40×150 KF40-1.5” B 2.17 1.62 1.4 1.51 0.2
[55] [41.2] [35.58] [38.35] [5.1]
KF-BF-50×025 KF50-1/4” A 2.95 2.06 0.26 0.2
[75] [52.2] [6.50] [5.1]
KF-BF-50×038 KF50-3/8” A 2.95 2.06 0.38 0.2
[75] [52.2] [9.65] [5.1]
KF-BF-50×050 KF50-1/2” B 2.95 2.06 0.4 0.51 0.2
[75] [52.2] [10.16] [12.95] [5.1]
KF-BF-50×075 KF50-3/4” B 2.95 2.06 0.65 0.76 0.2
[75] [52.2] [16.51] [19.30] [5.1]
KF-BF-50×100 KF50-1.0” B 2.95 2.06 0.9 1.01 0.2
[75] [52.2] [22.88] [25.65] [5.1]
KF-BF-50×150 KF50-1.5” B 2.95 2.06 1.4 1.51 0.2
[75] [52.2] [35.58] [38.35] [5.1]
KF-BF-50×200 KF50-2.0” B 2.95 2.06 1.9 2.01 0.2
[75] [52.2] [48.26] [51.05] [5.1]
