KF Full Nipples – Shop Vacuum Chamber

Sale

KF Full Nipples Dimensions

KF Full Nipples Dimensions

KF Full Nipples

~~Starting at: $63.50~~ Starting at: $62.23

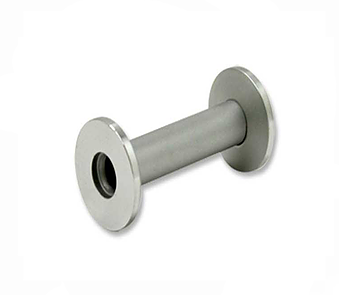

KF Full Nipples are made from SS304. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.

SKU: SVC-SKU-1520 Category: Full Nipples Tags: fitting, full, full nipple, kf, kwik, nipple, nipples, quick, qwik

Choose an option

KF Full Nipples – KF 10-2.50"

SKU: KF-FN-10

KF Full Nipples – KF 16-2.30"

SKU: KF-FN-16

KF Full Nipples – KF 25-4.00"

SKU: KF-FN-25

KF Full Nipples – KF 40-4.80"

SKU: KF-FN-40

KF Full Nipples – KF 50-6.30"

SKU: KF-FN-50

Kf Full Nipple Sizes

Clear

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description
Additional information
Dimensions

Description

KF Full Nipples are made from SS304. They are rated to 200 Celsius and 1E-8 Torr. They utilize KF clamps and an elastomeric seal.

Additional information

Weight	N/A
Kf Full Nipple Sizes	KF 10-2.50", KF 16-2.30", KF 25-4.00", KF 40-4.80", KF 50-6.30"

Catalog Part #	Size	A	B	C
		in	in	in
		[mm]	[mm]	[mm]
KF-FN-10	KF10-2.50”	1.18	0.48	2.5
KF-FN-10	KF10-2.50”	[30]	[12.2]	[63.5]
KF-FN-16	KF16-2.30”	1.18	0.68	2.3
KF-FN-16	KF16-2.30”	[30]	[17.2]	[58.4]
KF-FN-25	KF25-4.00”	1.57	1.03	4.06
KF-FN-25	KF25-4.00”	[40]	[26.2]	[103.1]
KF-FN-40	KF40-4.80”	2.17	1.62	4.8
KF-FN-40	KF40-4.80”	[55]	[41.2]	[121.9]
KF-FN-50	KF50-6.30”	2.95	2.06	6.3
KF-FN-50	KF50-6.30”	[75]	[52.2]	[160.0]
