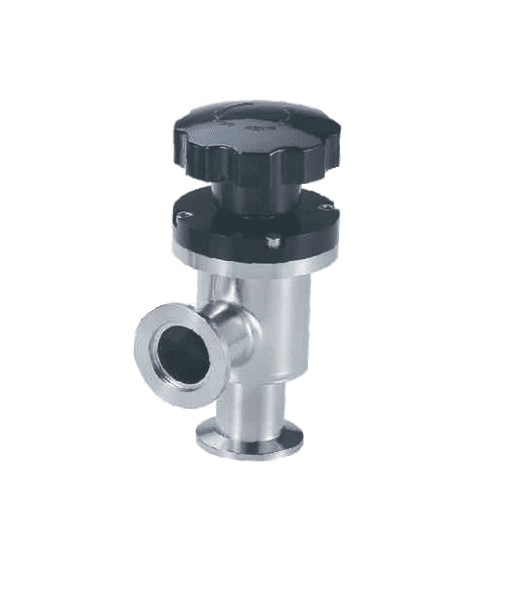

Manual Angle HV KF/ISO Poppet Valves

Manual Angle HV KF/ISO Poppet Valves

Isolation Poppet Valves are typically used as ‘shut-off’ devices and are installed in roughing and forelines where most applications connect to an exhaust system and there is a potential risk of
contamination. In addition, special design ‘dry valves’ offer the necessary protection for vacuum systems when back streaming occurs. The Poppet Valves use edge welded bellows as standard
and provide optimum conductance with a small footprint design.

> 1 million cycles between service intervals.
– Compact, low profile, small footprint design.
– Spring returned to ‘closed’ during power / air failure.
– High purity, dry valve system with a self-lubricating mechanism, significantly reduces particle generation.

Choose from KF or ISO flanges.

Note, the “CL” distance is the centerline to centerline distance of the ports in millimeters (mm).
