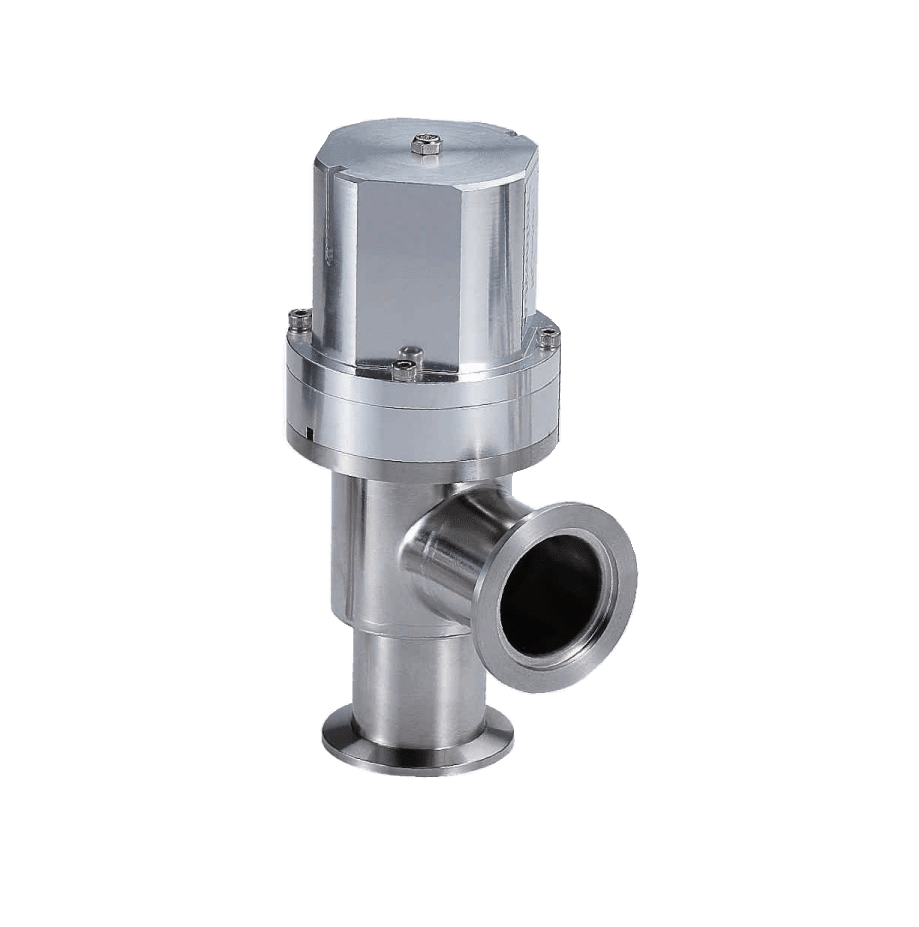

Pneumatic Angle Poppet Valves – KF, Single Acting

Isolation Poppet Valves are typically used as ‘shut-off’ devices and are installed in roughing and fore lines where most applications connect to an exhaust system and there is a potential risk of contamination. In addition, special design ‘dry valves’ offer the necessary protection for vacuum systems when back streaming occurs. The Poppet Valves use edge welded bellows as standard and provide optimum conductance with a small footprint design.

  • Available in a wide range of sizes from ¾” to 2” orifice
  • > 1 million cycles between service intervals
  • Compact, low profile, small footprint design
  • Spring returned to ‘closed’ during power / air failure
  • High purity, dry valve system with a self-lubricating mechanism, significantly reduces particle generation.
SKU: SVC-PAV-HV-KF Categories: , , Tags: , , , , ,
$491.37
Centerline = 40mm
SKU: PAV-HV-KF-16
$491.37
Centerline = 55mm
SKU: PAV-HV-KF-16-1
$608.58
Centerline = 50mm
SKU: PAV-HV-KF-25
$608.58
Centerline = 52mm
SKU: PAV-HV-KF-25-1
$702.12
Centerline = 65mm
SKU: PAV-HV-KF-40
$982.74
Centerline = 70mm
SKU: PAV-HV-KF-50
$982.74
Centerline = 76mm
SKU: PAV-HV-KF-50-1

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

Pneumatic Angle Poppet Valves – KF, Single Acting

Isolation Poppet Valves are typically used as ‘shut-off’ devices and are installed in roughing and fore lines where most applications connect to an exhaust system and there is a potential risk of contamination. In addition, special design ‘dry valves’ offer the necessary protection for vacuum systems when back streaming occurs. The Poppet Valves use edge welded bellows as standard and provide optimum conductance with a small footprint design.

  • Available in a wide range of sizes from ¾” to 2” orifice
  • > 1 million cycles between service intervals
  • Compact, low profile, small footprint design
  • Spring returned to ‘closed’ during power / air failure
  • High purity, dry valve system with a self-lubricating mechanism, significantly reduces particle generation.

Additional information

Weight N/A
Sizes

, , ,

Ultra High Vacuum High Vacuum
Feedthrough Welded Bellows in AM350 Welded Bellows in AM350
Gate Seal FKM (Viton) o-ring FKM (Viton) o-ring
Bonnet Seal OFHC Metal Gasket FKM (Viton)
Operating Pressure Range 2,500 Torr to 1E-10 2,500 Torr to 1E-8
2,000 mbar to 1.33E-10 2,000 mbar to 1.33E-8
Leak Rate 1E-10 Torr-l/s, He 1E-9 Torr-l/s, He
1.33E-10 mbar-l/s, He 1.33E-9 mbar-l/s, He
Cycle Life >1,000,000 cycles
Temperature for Valve Body 250 Celsius Open, 200 Celsius Closed
Temperature for Actuator 100 Celsius
Temperature for Solenoid/Position Indicator 80 Celsius
Bake Temperature 200 Celsius 100 Celsius
Valve Body Material SS304L
Mechanism Material SS304L
Actuator Material Aluminum
Mounting Position Any
Pneumatic Operating Pressure 4 bar to 5.5 bar
58 to 80 psi
Failure Protect Spring Close for KF16, KF25, KF40, KF50, CF 1.33″, CF 2.75″
Part Number Tube OD A B C D
PAV-HV-KF-16 3/4″ 40 52 147 61
PAV-HV-KF-16-1 3/4″ 55 52 161 61
PAV-HV-KF-25 1″ 50 52 154 61
PAV-HV-KF-25-1 1″ 52 52 156 61
PAV-HV-KF-40 1.5″ 65 65 176 77
PAV-HV-KF-50 2″ 70 67 232 85
PAV-HV-KF-50-1 2″ 76 67 238 85

Solenoid Pack

Position Indicator
