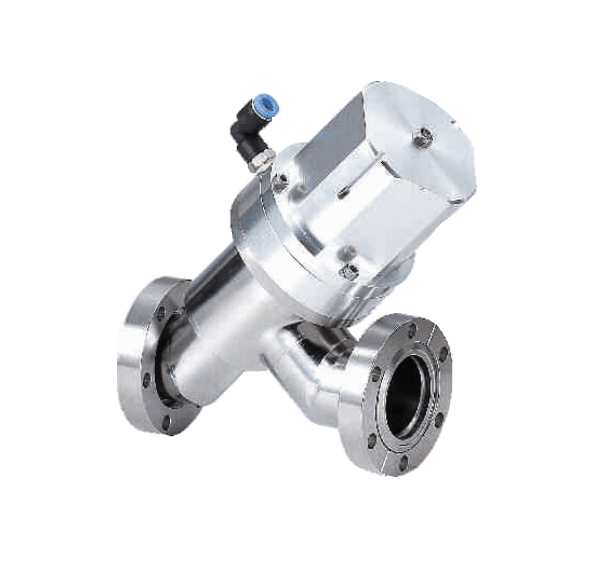

Pneumatic CF Inline Bellows Valve – HV and UHV

These pneumatic CF inline bellows valves use an elastomeric bonnet seal or a copper OFHC seal and provide a seal from 2 atmospheres to E-9mbar range. Good for over 1 million cycles. The body material is stainless steel 304 and the actuator is aluminum 6061. Bakeable to 200C.

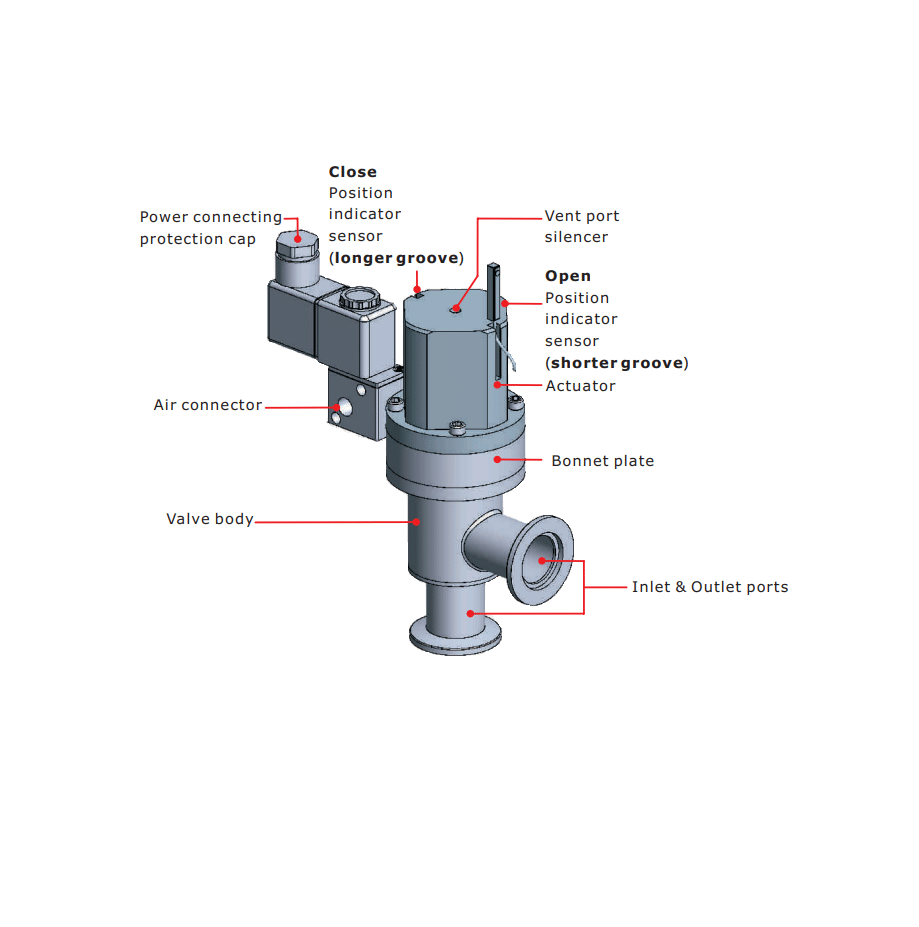

Don’t forget to add a solenoid and positions indicators to your order. See “Accessories” tab below.

SKU: SVC-PIV-UHV-HV-CF Categories: , , Tags: , , , , , , , , , , , , , , ,
Original price was: $465.75.Current price is: $456.44.
SKU: PIV-HV-CF-133
Original price was: $525.55.Current price is: $515.04.
SKU: PIV-UHV-CF-133
Original price was: $465.75.Current price is: $456.44.
SKU: PIV-HV-CF-212
Original price was: $548.55.Current price is: $537.58.
SKU: PIV-UHV-CF-212
Original price was: $546.25.Current price is: $535.33.
SKU: PIV-HV-CF-275
Original price was: $694.60.Current price is: $680.71.
SKU: PIV-UHV-CF-275
Original price was: $810.75.Current price is: $794.54.
SKU: PIV-HV-CF-338
Original price was: $1,022.35.Current price is: $1,001.90.
SKU: PIV-UHV-CF-338
Original price was: $897.00.Current price is: $879.06.
SKU: PIV-HV-CF-450
Original price was: $1,261.55.Current price is: $1,236.32.
SKU: PIV-UHV-CF-450
Original price was: $1,907.85.Current price is: $1,869.69.
SKU: PIV-HV-CF-600
Original price was: $2,415.00.Current price is: $2,366.70.
SKU: PIV-UHV-CF-600
Original price was: $4,836.90.Current price is: $4,740.16.
SKU: PIV-HV-CF-800

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

Pneumatic CF Inline Bellows Valve – HV and UHV

These pneumatic CF inline bellows valves use an elastomeric bonnet seal or a copper OFHC seal and provide a seal from 2 atmospheres to E-9mbar range. Good for over 1 million cycles. The body material is stainless steel 304 and the actuator is aluminum 6061. Bakeable to 200C.

Don’t forget to add a solenoid and positions indicators to your order. See “Accessories” tab below.

Additional information

Weight N/A
Sizes

, , , , , ,

KF16 KF25 KF40 KF50
Max Differential Pressure Against Gate 2025 Torr 1800 Torr 1725 Torr 1500 Torr
Max Differential Pressure at Opening 1500 Torr
Pneumatic Valve Open/Close Time .5 sec .6 sec .8 sec .9 sec
Valve’s Conductance – Inline Type (molecular flow) 5 l/s 12 l/s 44 l/s 66 l/s
Part Number Tube OD A B C D Acting
PIV-HV-CF-133 3/4″ 119 52 61 135 Single
PIV-HV-CF-212 1″ 107 52 61 141 Single
PIV-HV-CF-275 1.5″ 133 65 77 171 Single
PIV-HV-CF-338 2 182 67 85 228 Single
PIV-HV-CF-450 2.5″ 216 70 102 251 Double
PIV-HV-CF-600 4″ 355 89 165 367 Double
PIV-HV-CF-800 6″ 394 140 227 489 Double
PIV-UHV-CF-133 3/4″ 119 52 70 133 Single
PIV-UHV-CF-212 1″ 114 52 70 141 Single
PIV-UHV-CF-275 1.5″ 133 65 86 171 Single
PIV-UHV-CF-338 2 182 66 110 228 Single
PIV-UHV-CF-450 2.5″ 216 70 122 251 Double
PIV-UHV-CF-600 4″ 355 89 171 367 Double



Solenoid Packs

Position Indicators
