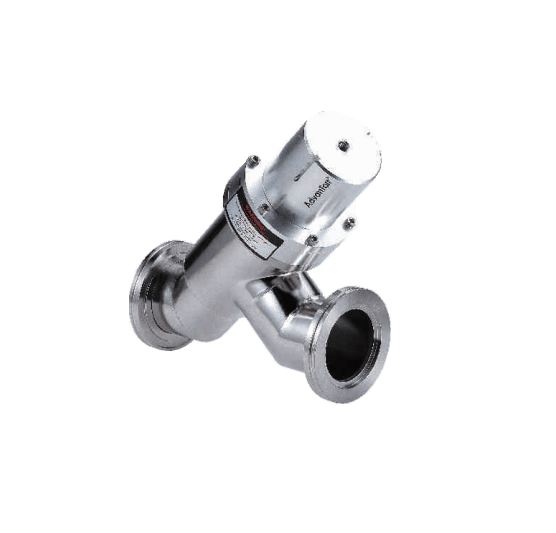

Pneumatic ISO-LF Inline Bellows Valve
Starting at: $982.10 Starting at: $962.46
Pneumatic ISO-LF Inline Bellows Valve
These pneumatic KF inline bellows valves use an elastomeric bonnet seal and provide a seal from 2 atmospheres to E-9mbar range. Good for over 1 million cycles. The body material is stainless steel 304 and the actuator is aluminum 6061. Bakeable to 200C.
Don’t forget to add a solenoid and positions indicators to your order. See “Accessories” tab below.
- Description
- Additional information
- Technical Specs
- Dimensions
- Accessories
Description
Pneumatic ISO-LF Inline Bellows Valve
These pneumatic KF inline bellows valves use an elastomeric bonnet seal and provide a seal from 2 atmospheres to E-9mbar range. Good for over 1 million cycles. The body material is stainless steel 304 and the actuator is aluminum 6061. Bakeable to 200C.
Don’t forget to add a solenoid and positions indicators to your order. See “Accessories” tab below.
| KF16 | KF25 | KF40 | KF50 | |
| Max Differential Pressure Against Gate | 2025 Torr | 1800 Torr | 1725 Torr | 1500 Torr |
| Max Differential Pressure at Opening | 1500 Torr | |||
| Pneumatic Valve Open/Close Time | .5 sec | .6 sec | .8 sec | .9 sec |
| Valve’s Conductance – Inline Type (molecular flow) | 5 l/s | 12 l/s | 44 l/s | 66 l/s |
| Part Number | Tube OD | A | B | C | D |
| PIV-HV-ISOK-63 | 2.5″ | 209 | 70 | 102 | 242 |
| PIV-HV-ISOK-80 | 3″ | 268 | 82 | 132 | 280 |
| PIV-HV-ISOK-100 | 4″ | 345 | 89 | 165 | 357 |
| PIV-HV-ISOK-160 | 6″ | 381 | 140 | 227 | 477 |
