CF Full Nipple
CF Full Nipple
CF Half Nipple CF Half Nipples
CF Straight Reducer CF Straight Reducers

CF Full Nipple

Starting at: $75.40 Starting at: $73.89

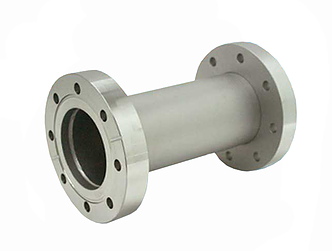

CF Full Nipples are made from SS304. They are rated to 450 Celsius and for UHV service. They utilize copper gaskets. One flange is fixed and the other is rotatable.

SKU: SVC-SKU-1996 Categories: , Tags: , , , , , , , ,
$73.89
SKU: CF-FN-133
$82.81
SKU: CF-FN-212
$89.18
SKU: CF-FN-275
$184.73
SKU: CF-FN-338
$267.54
SKU: CF-FN-450
$312.13
SKU: CF-FN-462
$318.50
SKU: CF-FN-600
$547.82
SKU: CF-FN-675
$637.00
SKU: CF-FN-800
$1,076.53
SKU: CF-FN-1000

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

CF Full Nipples are made from SS304. They are rated to 450 Celsius and for UHV service. They utilize copper gaskets. One flange is fixed and the other is rotatable.

Additional information

Weight N/A
Cf Full Nipple

, , , , , , , , ,

CF Full Nipple Dimensions

Catalog Part # Flange Size A B C
(in) (in) in [mm]
CF-FN-133 CF1.33” 1.33 1.33 3
[76.20]
CF-FN-212 CF2.12” 2.12 2.12 4.1
[104.14]
CF-FN-275 CF2.75” 2.75 2.75 4.92
[124.97]
CF-FN-338 CF3.38” 3.38 3.38 6.44
[163.58]
CF-FN-450 CF4.50” 4.5 4.5 6.76
[171.70]
CF-FN-462 CF4.62” 4.62 4.62 7.06
[179.32]
CF-FN-600 CF6.00” 6 6 8.64
[219.46]
CF-FN-675 CF6.75” 6.75 6.75 8.46
[214.90]
CF-FN-800 CF8.00” 8 8 7.87
[200.00]
CF-FN-1000 CF10.00” 10 10 16
[406.40]
