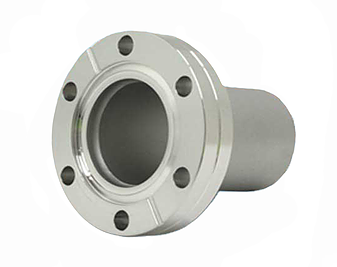

CF Half Nipple
CF Half Nipple
CF Full Nipple CF Full Nipple

CF Half Nipples

Starting at: $45.50 Starting at: $44.59

CF Half Nipples are made from SS304. They are rated to 450 Celsius and for UHV service. They utilize copper gaskets. The CF flange on the half nipple is fixed.

SKU: SVC-SKU-1983 Categories: , Tags: , , , , , , ,
Original price was: $45.50.Current price is: $44.59.
SKU: CF-HN-133
Original price was: $49.40.Current price is: $48.41.
SKU: CF-HN-212
Original price was: $52.00.Current price is: $50.96.
SKU: CF-HN-275
Original price was: $101.40.Current price is: $99.37.
SKU: CF-HN-338
Original price was: $149.50.Current price is: $146.51.
SKU: CF-HN-450
Original price was: $182.00.Current price is: $178.36.
SKU: CF-HN-462
Original price was: $195.00.Current price is: $191.10.
SKU: CF-HN-600
Original price was: $208.00.Current price is: $203.84.
SKU: CF-HN-675
Original price was: $377.00.Current price is: $369.46.
SKU: CF-HN-800
Original price was: $526.50.Current price is: $515.97.
SKU: CF-HN-1000

Need a Quote?

Add the items you’re interested in to your cart and choose “Get Quote” at checkout. It’s fast, easy, and there’s no obligation.

Description

CF Half Nipples are made from SS304. They are rated to 450 Celsius and for UHV service. They utilize copper gaskets. The CF flange on the half nipple is fixed.

Additional information

Weight N/A
Cf Half Nipple

, , , , , , , , ,

CF Half Nipple Dimensions

Part Number Flange Size A (in) B in (mm) C in (mm)
CF-HN-133 CF1.33” 1.33 0.75 1.5
[19.05] [38.10]
CF-HN-212 CF2.12” 2.12 1 2.05
[25.40] [52.07]
CF-HN-275 CF2.75” 2.75 1.5 2.46
[38.10] [62.48]
CF-HN-338 CF3.38” 3.38 2 3.22
[50.80] [81.79]
CF-HN-450 CF4.50” 4.5 2.5 3.38
[63.50] [85.85]
CF-HN-462 CF4.62” 4.62 3 3.53
[76.20] [89.66]
CF-HN-600 CF6.00” 6 4 4.32
[101.60] [109.73]
CF-HN-675 CF6.75” 6.75 5 4.32
[127.00] [109.70]
CF-HN-800 CF8.00” 8 6 5.5
[152.40] [139.70]
CF-HN-1000 CF10.00” 10 8 8
[203.20] [203.20]
