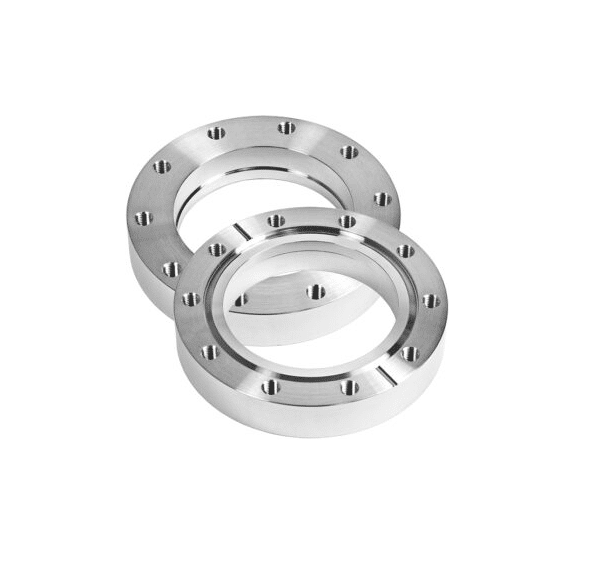

Conflat CF Bored Flanges – Fixed
Starting at: $17.00 Starting at: $16.15
Conflat CF Bored Flanges – Fixed
The perfect solution for creating robust and reliable connections in high-vacuum applications. Crafted from premium-grade stainless steel 304, these flanges are designed to withstand harsh environments while providing excellent resistance to corrosion and wear.
The Conflat Bored Flanges Fixed feature a precision-bored center, allowing for direct integration with components like tubes and fittings, ensuring smooth, uninterrupted flow. The serrated sealing surface is specially designed to work efficiently with a copper gasket, delivering an airtight seal that minimizes the risk of leakage.
Key Features:
- High-quality stainless steel construction ensures durability and strength.
- Precision bore design for easy alignment and installation of components.
- Serrated sealing surface creates a dependable, leak-free connection.
- Description
- Additional information
Description
Conflat CF Bored Flanges – Fixed
The perfect solution for creating robust and reliable connections in high-vacuum applications. Crafted from premium-grade stainless steel 304, these flanges are designed to withstand harsh environments while providing excellent resistance to corrosion and wear.
The Conflat Bored Flanges Fixed feature a precision-bored center, allowing for direct integration with components like tubes and fittings, ensuring smooth, uninterrupted flow. The serrated sealing surface is specially designed to work efficiently with a copper gasket, delivering an airtight seal that minimizes the risk of leakage. Fixed flanges are offered in thru-holes or tapped with inch threads and are fixed (non-rotatable).
Key Features:
- High-quality stainless steel construction ensures durability and strength.
- Precision bore design for easy alignment and installation of components.
- Serrated sealing surface creates a dependable, leak-free connection.
Additional information
| Weight | N/A |
|---|---|
| Size | 1.33" x 0.38" Thru, 1.33" x 0.38" Tapped, 1.33" x 0.50" Thru, 1.33" x 0.50" Tapped, 1.33" x 0.75" Thru, 1.33" x 0.75" Tapped, 2.12" x 1.00" Thru, 2.12" x 1.00" Tapped, 2.75" x 0.75" Thru, 2.75" x 0.75" Tapped, 2.75" x 1.00" Thru, 2.75" x 1.00 Tapped, 2.75" x 1.50" Thru, 2.75" x 1.50" Tapped, 2.75 x 1.75" Thru, 2.75" x 1.75" Tapped, 3.38" x 2.00" Thru, 3.38" x 2.00" Tapped, 4.5" x 2.50" Thru, 4.50" x 2.50" Tapped, 4.62" x 3.00" Thru, 4.62" x 3.00" Tapped, 6.00" x 4.00" Thru, 6.00" x 4.00" Tapped, 6.75" x 5.00 Thru, 6.75" x 5.00 Tapped, 8.00" x 6.00" Thru, 8.00" x 6.00" Tapped, 10.00" x 8.00" Thru, 10.00" x 8.00" Tapped, 12.00" x 10.00" Thru, 12.00" x 10.00" Tapped, 13.25" x 10.00 Thru, 13.25 x 10.00 Tapped, 14.00" x 12.00" Thru, 14.00" x 12.00" Tapped, 16.50" x 14.00" Thru, 16.50" x 14.00" Tapped |
