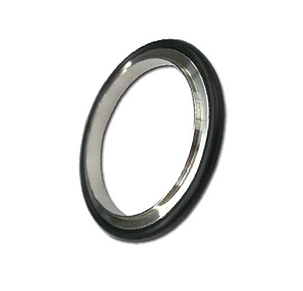

KF Centering Rings with O-ring – Aluminum
Starting at: $4.13 Starting at: $4.04
KF Centering Rings with O-ring – Aluminum
KF centering ring assemblies include a supportive inner aluminum ring and an elastomer outer ring (o-ring) which is compressed between the ISO flanges to create a vacuum tight seal. Three different o-ring materials are offered: FKM (Viton), Buna, and Silicone.
- Description
- Additional information
- Dimensions
Description
KF Centering Rings with O-ring – Aluminum
KF centering ring assemblies include a supportive inner aluminum ring and an elastomer outer ring (o-ring) which is compressed between the ISO flanges to create a vacuum tight seal. Three different o-ring materials are offered: FKM (Viton), Buna, and Silicone.
Additional information
| Weight | N/A |
|---|---|
| Kf Sizes | |
| O-Ring Material | Viton, Buna, Silicone |

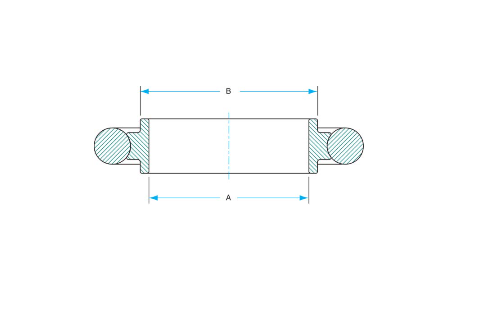

| Size | Dim A | Dim B |
| KF10 | 0.37 | 0.47 |
| KF16 | 0.64 | 0.67 |
| KF25 | 0.93 | 1.03 |
| KF40 | 1.51 | 1.61 |
| KF50 | 1.95 | 2.05 |
