CF Silver Plated Bolts w/ Plate Nuts
Starting at: $44.40
CF Silver Plated Bolts w/ Plate Nuts

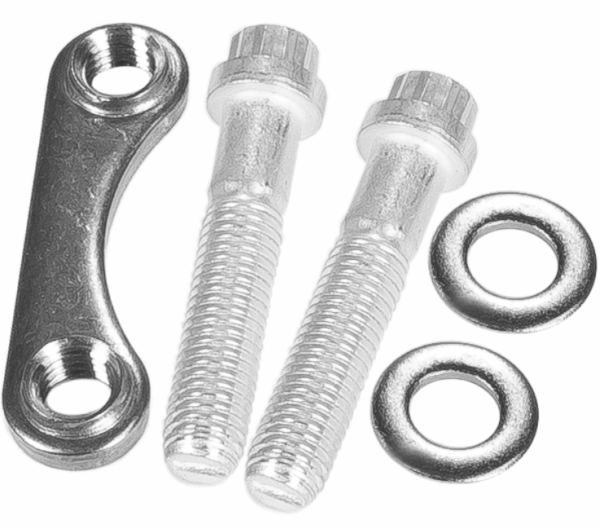

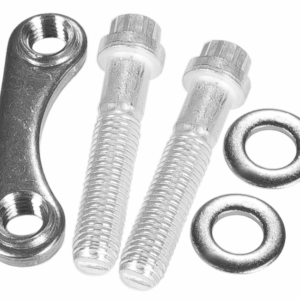

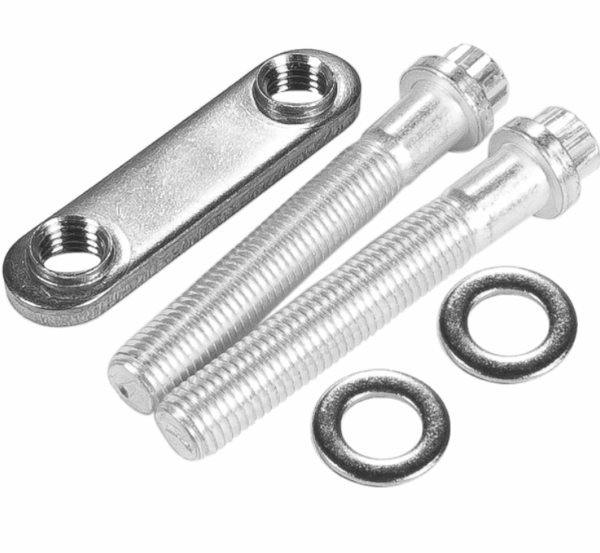

These silver plated bolt kits for Conflat (CF) flanges include 25 bolts (12-point head), 13 plate nuts and 25 washers. The material is 302HQ (A286 for 1-1/3 CF Bolt) Stainless Steel (SS) and comes in packs of 25.

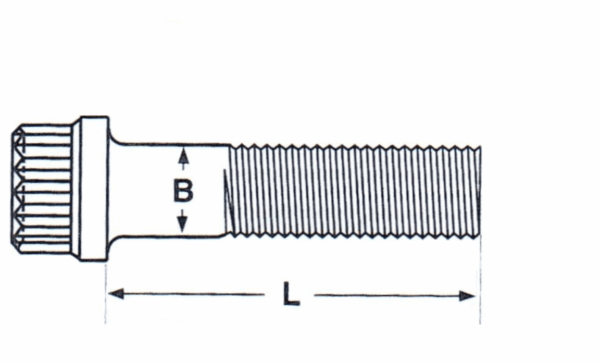

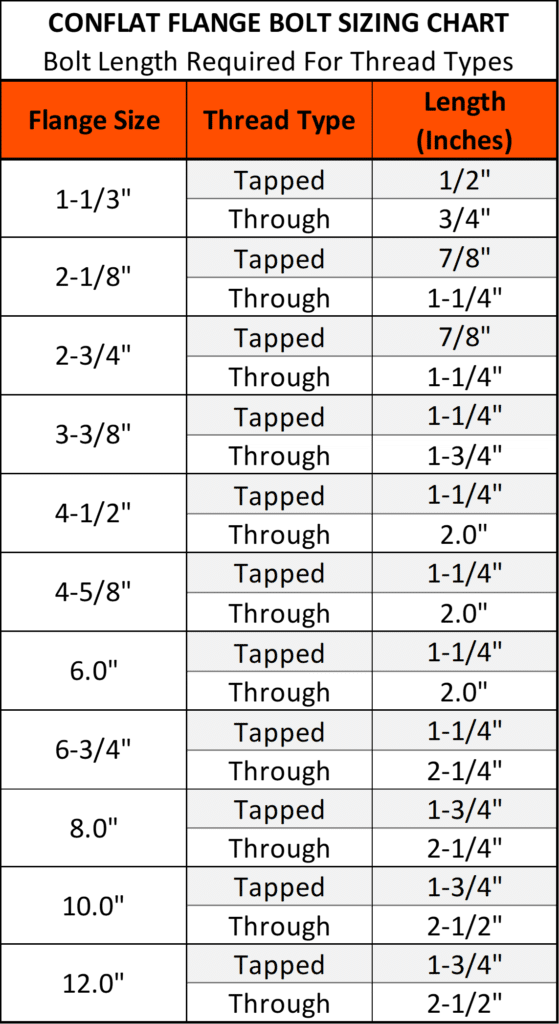

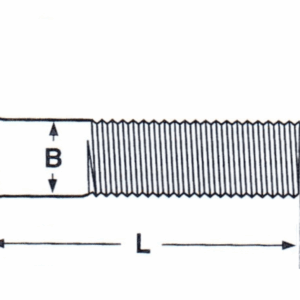

To select the correct length for your application, view the ‘Conflat Flange Bolt Sizing Chart’ tab. Torque specifications are also listed under the ‘Torque Specifications Chart’ tab.
- Description
- Additional information
- Conflat Flange Bolt Sizing Chart
Description
CF Silver Plated Bolts w/ Plate Nuts
These silver plated bolt kits for Conflat (CF) flanges include 25 bolts (12-point head), 13 plate nuts and 25 washers. The material is 302HQ (A286 for 1-1/3 CF Bolt) Stainless Steel (SS) and comes in packs of 25.
To select the correct length for your application, view the ‘Conflat Flange Bolt Sizing Chart’ tab. Torque specifications are also listed under the ‘Torque Specifications Chart’ tab.
Additional information
| Weight | N/A |
|---|---|
| Cf Sp Bolt Plate Nut Washer | 1/4-28 B x 1-1/4" L, 1/4-28 B x 2-1/8" L, 5/16-24 B x 1-3/4" L, 5/16-24 B x 2-1/2" L, 5/16-24 B x 2-1/4" L, 5/16-24 B x 2.0" L, 8-32 B x 3/4" L |
